Description
- The operation and interval time of KAC and KACP are controlled by PLC.
- KAC and KACP have pressure gauges that enable the users to check the operating pressure easily.
- KAC and KACP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
- A 60kgf/cm2 socket pressure switch can be added to KAC and KACP on request to detect the operating pressure automatically.
- A magnetic level switch can be added to KAC and KACP on request to detect the grease level automatically.
- For KAC, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.

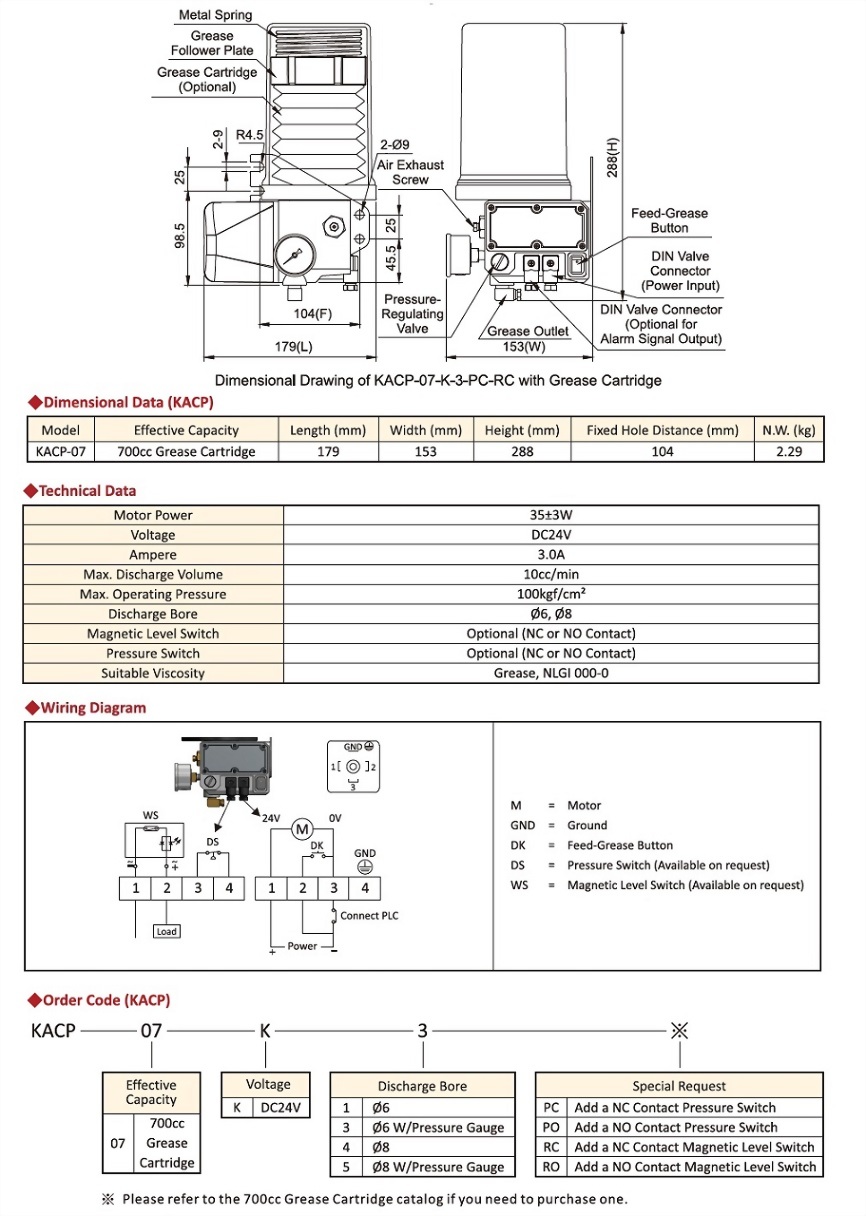

- KACP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KACP-07 with a new grease cartridge. Standard KACP-07 does not include a grease cartridge but is available upon request.
