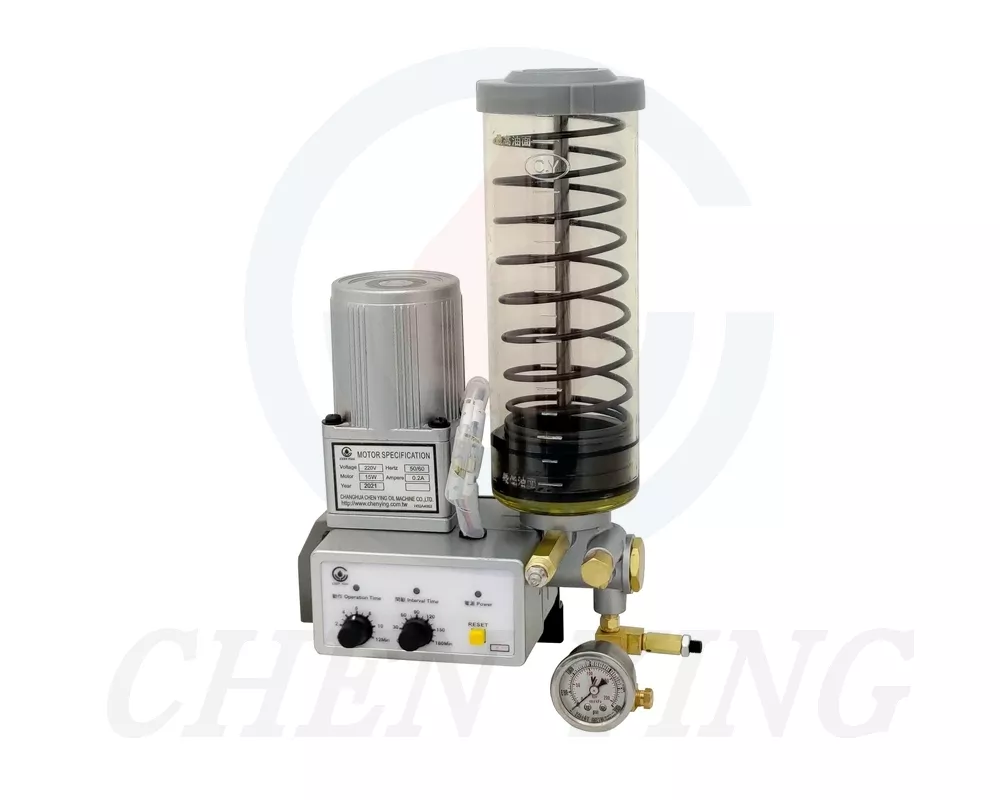

Bơm mỡ tự động loại điện trở KSBP (có lò xo kim loại)

SKU bơm-mỡ-tự-động--loại-điện-trở-ksbp-(có-lò-xo-kim-loại)-20250404025037 Categories ,
Bộ bôi trơn mỡ kiểu điện trở
Loại tự động hẹn giờ

*Model

KSBP

*Effective Capacity

— Please Select —
550cc
1500cc

*Interval Time

— Please Select —
180min
360min

*Voltage

— Please Select —
AC110V
AC220V
DC24V

*Discharge Bore

— Please Select —
φ4
φ6
φ4 W/Pressure Gauge
φ6 W/Pressure Gauge
φ8
φ8 W/Pressure Gauge
PT1/8
PT1/8 W/Pressure Gauge

Special Request

— Please Select —
Add a NC Contact Magnetic Level Switch
Add a NO Contact Magnetic Level Switch

Remarks

<td><input class=”form-control” id=”inquiry_remark” type=”text”/></td>

Description

  1. KSBP has a timer that controls its operation and interval time.
  2. KSBP has a pressure gauge that enables the user to check the operating pressure easily.
  3. KSBP has a metal spring inside its grease tank, enabling it to work with thicker grease of the viscosity NLGI 1 and NLGI 2.
  4. A magnetic level switch can be added to KSBP on request to detect the grease level automatically.
  5. Please refill grease from the grease inlet of KSBP to prevent air and impurities from entering the grease tank.

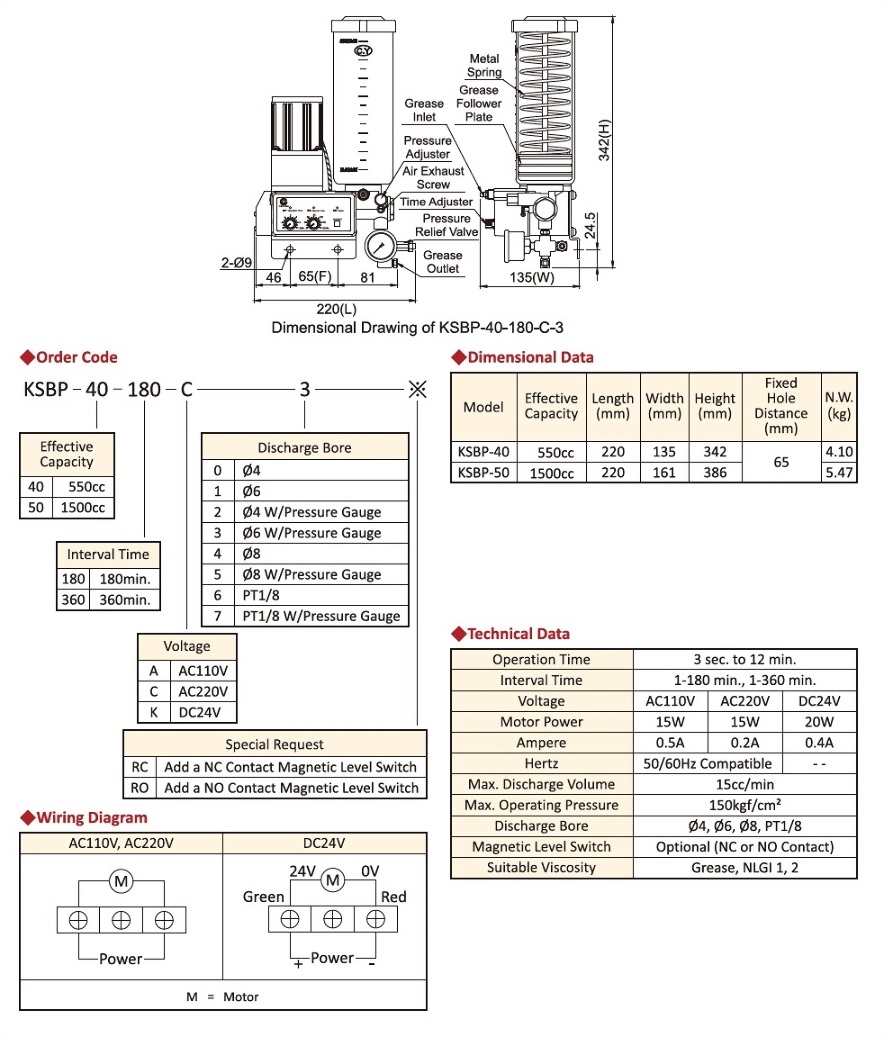

KSBP,Technical Data,Dimensional Data,Order Code,Wiring Diagram,Dimensional Drawing
