- NO contact: signals when pressure reaches preset value
- NC contact: signals when pressure drops below preset value
- DBS series includes standard waterproof cover; DB series optional
- Life expectancy from 50,000 to 1,000,000 cycles depending on series

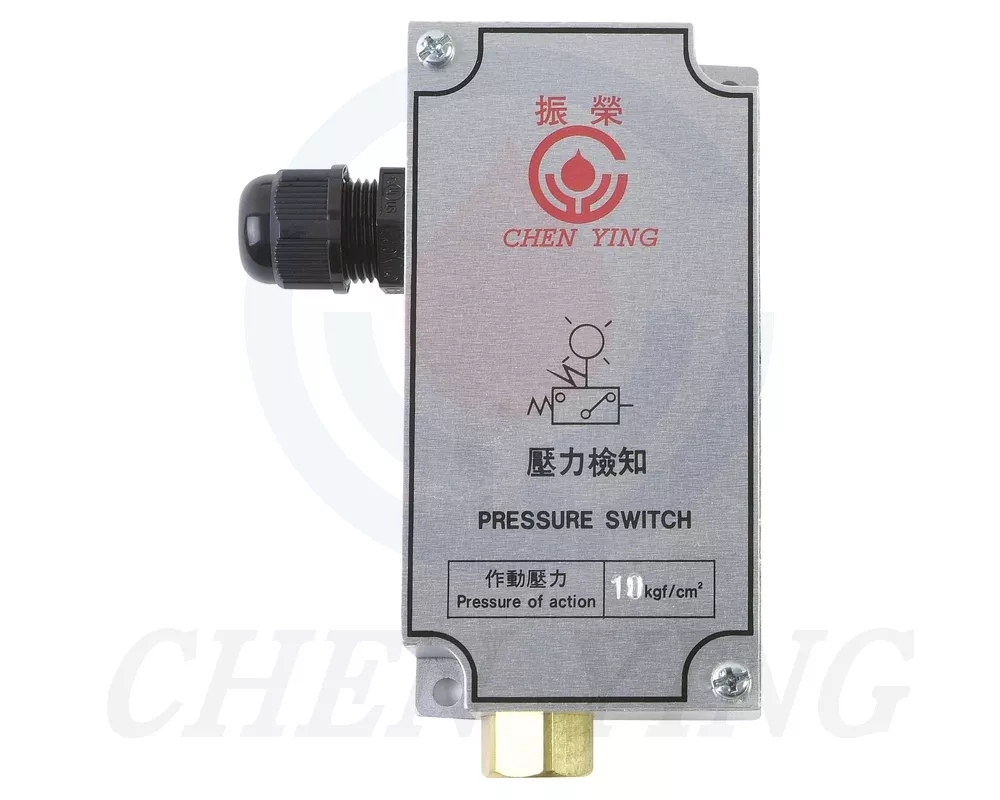

Pressure Switch
Pressure Switch
Socket and adjustable pressure switches (NO/NC contact, 50,000 to 1 million life cycles) for detecting pressure in centralized lubrication systems. More details
| Order Code | Model | Contact Type | Operating Pressure (kgf/cm²) | Life Expectancy | Wiring Type | Suitable Temp. | Max. Current | Max. Voltage | Outer Thread | N.W. (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| DB00A001 | 20142 | NO | 1±0.2 | 50,000 Cycles | Push-on | -20 to 100°C | 3.5A | DC12V | PT1/8 | 33 |
| DB01A001 | 20143 | NC | ||||||||
| DB00A002 | 20163-5 | NO | 3.5±0.5 | |||||||
| DB00A003 | 20140 | 8±1.0 | ||||||||
| DB00A004 | PS6080 | 8±0.3 | 100,000 Cycles | -20 to 125°C | 3.75A | AC240V | ||||
| DB01A006 | PS1411 | NC | 14±0.5 | -35 to 125°C | ||||||
| DBS0B008 | DBS Series | NO | 8±0.5 | 1 Million Cycles | Screw | -10 to 100°C | 4A | AC220V | 65 | |
| DBS0B060 | 60±5% | |||||||||
| - | M21012 | - | 10 | - | - | - | - | - | PT1/4 | 350 |
| - | M21039 | - | 0.5-3 | - | - | - | - | - | 1/4x0.7 | 400 |
