Description
- The operation and interval time of KGB and KGBP are controlled by PLC. KGB and KGBP require 4.5-8kgf/cm2 pneumatic pressure supply for the pressure-relief function. Electric type is also available on request.
- KGB and KGBP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
- KGB and KGBP have pressure gauges that enable the user to check the operating pressure easily.
- KGB and KGBP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
- AC110V and AC220V models have thermal controls that will shut down the motors for about 5 minutes when the motor is overheated.
- A 60kgf/cm2 socket pressure switch can be added to KGB and KGBP on request to detect the operating pressure automatically.
- A magnetic level switch can be added to KGB and KGBP on request to detect the grease level automatically.
- For KGB, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.

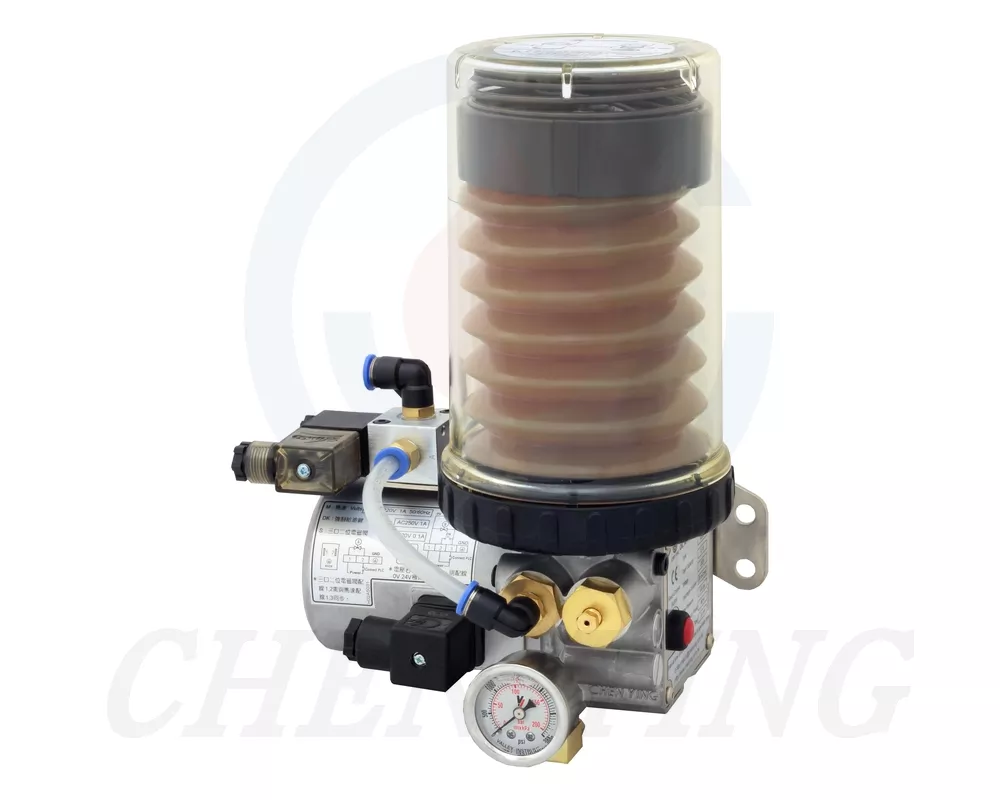

- KGBP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGBP-07 with a new grease cartridge. Standard KGBP-07 does not include a grease cartridge but is available upon request.
